Space Boy / P2-Z is going to say goodbye Last 1 set in stock only
     Space Boy / P2-Z 快要告別星壇，尚餘壹套

TG-SP 2 Equatorial mount 赤道儀





TG-SP 2 赤道儀
Sky-90 loaded on TG-SP 2!
架在TG-SP 2上的Sky-90!

TG-SP 2 is the lightest of all equatorial mounts. Main body's weight less than 2kg, with a loading capacity of 3.5kg. A maximum of auto guiding limited to 200mm lens, manual guiding precision limit up to 500mm.

With the option polar alignment telescope, it can be polar aligned either in Northern and Southern hemisphere, a best tool for taking total solar eclipse.

It can be loaded on top the convention camera tripod or fixed to the factory aluminum alloy tripod. It is driven by 4 AA batteries, last for about 15 hours.

TG-SP2是高橋赤道儀中最輕巧、最便攜的型號. (本體重量小於2公斤)載重可達3.5公斤. 自動追蹤攝影可至200毫米鏡頭, 手動追蹤攝影極限可達500毫米焦距精度.
另配極軸望遠 鏡方便南北半球隨身帶備, 是拍攝日全蝕必須工具.
它可用一般相機腳架搭載, 亦可配用原廠輕合金三腳架.
用4枚AA電池驅動, 可使用約15小時.


RA part (TG-SD) with camera plate
TG-SD 赤經部份連照相機板



Control box equipped with power switch, blue (2X) and red (stop) button
TG-SP控制器, 付電源開關、藍色2倍速及紅色暫停按鍵.另配特制腳架


test report &
hands on information of TG-SP
TG-SP 用家手記


The metal part between equatorial head and tripod
赤道儀與腳架之間的連接金具


Polar alignment telescope situated at the lower part of main body of TG-SP 2
極軸望遠鏡置於TG-SP 2本體下方





TG-SP 2 include R.A., declination unit, countweight & control box
TG-SP 2包括赤經,赤緯,平衡錘及控制器



Space Boy Equatorial Mount (last 1 set in stock)
太空小子赤道儀 (只餘壹套)


Space Boy equatorial mount w/HD-5 motor mounted on Astro short aluminum leg (discontinued)
Space Boy 赤道儀配以HD-5馬達裝置在Astro短鋁腳上 (已停產)
HD-5 motor drive gear box with cluctch
HD-5 馬達齒輪連離合器



Mewlon 180 (7.1")+Space Boy EQ mount

 FSQ-106 + Space Boy photo

　


        Space Boy Equatorial Mount
      太空小子赤道儀


           Space Boy system chart
                  太空小子系統圖




HD-5 installation chart
HD-5裝嵌圖
Power consumption: 130mAh  耗電量130mA


P-2Z Equatorial Mount (almost discontinue)
 P-2Z赤道儀 (快將停產)


Sky-90+P-2Z+HD-5+FC-L

 An EQ mount for eclipse chaser
P-2Z is designed for high portability with precision tracking, high loading capacity. High torque, low power consumption of HD-5 R.A. motor powered by 4pcs of A size battery. The level bubble which enables the polar alignment accuracy, polarscope illuminator an additional feature. This sophisticated equatorial mount can be used at all locations in the Northern &  Southern hemisphere.

P-2Z user report

Old version of P-2Z： P-2S
(1986)

日蝕追縱者的赤道儀
 P2-Z專為便攜性及高精度而設計. 其HD-5赤經馬達高扭力,低耗電,由4枚A型號電池供電. 水平泡輔助修正極軸令對軸倍添準確. 極軸照明亦為一項附加特點. 這台卓越的赤道儀可在南北半球任何位置使用.

P-2Z 用家報告

P-2Z的舊型號：P-2S (1986)



Specification of P-2Z 規格
R.A. slow motion 赤經微調 Motor or manual drive
馬達驅動或手控
Dec. slow motion 赤緯微調 Manually 手控
Azimuth adjustment 方位較準 20°
Elevation  仰角 0~80°
Setting circles 定位度盤 R.A. 赤經 -10' increments 增量
DEC.赤緯 -2° increments 增量
Tracking accuracy 跟蹤精度 +/-5 arc seconds +/-5 弧秒
Loading capacity 載重 6kg (13.2lbs)
Gross weight including counterweight 毛重含平衡錘 7.4kg
Polar finder 極軸鏡 Built-in with 5' setting accuracy, scale pattern effective until 2015 with quick reference dial for N/S  內置式5' 定位精度, 至2015年快速參考導盤,南北合用
Motor drive 馬達驅動 Sidereal rate 恒星速
N/S switching 北/南 置換
Slewing speed (R.A.) 赤經回轉速度 0 or 2x sideral 恒星速
Power consumption 耗電量 130mA

　


 ETX-90+FS-60C on P-2Z for astrophoto with FM-2 at f.l.788mm f/8.75
FSQ-106+P-2Z+FC-S wooden tripod w/brass weights 2kg, 3.5kg
Mewlon 180+P-2Z+aluminum tripod
Sky-90+P-2Z+original FC-S  wooden tripod w/long weight shaft


EM-2S Equatorial mount 赤道儀


 The EM-2S mount is an accurate, precision built German equatorial mount that provides a stable platform for telescopes up to 7kg. It is an ideal mount for a small to medium sized Takahashi© refractor or reflector. The EM-2S is a highly portable mount for those times when accuracy is needed in a lightweight package.

Another built in feature is a reticle polar alignment scope in the polar axis. This helps to gain an accurate polar alignment quickly and accurately.

EM-2S 德式赤道儀可提供一個7公斤的穩定平台給望遠鏡之用. 它是高橋中小型望遠鏡的理想配搭. EM-2S 既有機動性亦可提供相當的精度.

另一特點是內置極軸望遠鏡, 可提供既快捷又準確的極軸調準.

SPECIFICATIONS for the EM-2S 規格

R.A. Slow-Motion 赤經微調 Motor driven or manually 馬達驅動或手控
DEC. Slow-Motion 赤緯微調 Manually 手控
Azimuth Adjustment 方位較準 20°
Elevation 仰角 25-50°
Setting Circles 定位度盤 R.A. 赤經 -10' increments 增量
 DEC.赤緯 -2° increments 增量
Tracking Accuracy 跟蹤精度 10 arc seconds 弧秒
Loading Capacity 載重 7kg (15.4 lbs)
Gross Weight including
Counter-weight 毛重含平衡錘		 10.5kg (23 lbs)
(w/3.5kg c/w)
Polar Finder 極軸鏡 Built-in with 5' setting accuracy, scale pattern effective until 2015 with quick reference dial for N/S  內置式5' 定位精度, 至2015年快速參考導盤,南北合用
Motor Drive 馬達驅動 Sidereal rate 恒星速
 N/S switching 北/南 置換

Slewing Speed (R.A.) 赤經回轉速度
(R.A. high speed mode) (DEC.)
(DEC. high speed mode) 高速檔

 0 or 2 x

　


 northern side of mount
 赤道儀北面
friction clutch
 離合器


control panel
操控板


control box 操控盒

polar                scope


EM-10 Temma II Equatorial Mount　


EM-10 Temma PC mount
panel


control box


eastern side


polar finder


The EM-10USD3 mount is an accurate, precision built German equitorial mount that provides a stable platform for telescopes up to 15 pounds. It is an ideal mount for a small to medium sized Takahashi© refractor or reflector. The EM-10 is a highly portable mount for those times when accuracy is needed in a lightweight package.

120x and 250x Temma "Go To" version now available. All "Go To" mounts are provided with RS-232C cable, ST-4 or ST-7 cable shaft encoders and first quality electric motors. The mount can operate in Temma mode and in the normal mode using the hand control.

EM-10USD3 德式赤道儀可提供一個7公斤的穩定平台給望遠鏡之用. 它是高橋中小型望遠鏡的理想配搭. EM-2S 既有機動性亦可提供相當的精度.

另一特點是內置極軸望遠鏡, 可提供既快捷又準確的極軸調準.

120x 與 250x 天馬"Go To"版本現已有售. 所有 "Go To"赤道儀均含RS-232連線, ST-4或ST-7連線軸編碼器及優質電子馬達. 赤道儀可以Temma狀態操作, 正常狀態以手提操控器操作.











EM-10 Temma II Specification 規格

Azimuth Adjustment 方位較準 20°
Elevation 仰角 20~50°
Setting Circles 定位度盤 R.A.赤經 -10' increments 增量  DEC. -赤緯 2° increments 增量
Tracking Accuracy 跟蹤精度 10 arc seconds 弧秒
Loading Capacity 載重 7kg (15.4 lbs.)
Gross Weight including
Counter-weight 毛重含平衡錘		 11kg (24.2 lbs)
(w/3.5kg c/w)
Polar axis finder 極軸鏡

Built-in with 3° setting accuracy  variable illuminator 內置式,含 3° 定位精度,可變光暗視野照明

Motor Drive 馬達驅動 Sidereal rate  N/S switching 恒星速, 北/南置換
Slewing Speed (R.A.)  (R.A. high speed mode) 赤經回轉速度
 (DEC.) (DEC. high speed mode)		 0.05x--2x  1.2x--16x
0--15 arc/sec   18--240arc/sec
Drive system
驅動系統		 Control of both axial drive and crystal oscillation and periodic error +- 0.05% (anti-sidereal hour) 雙軸以水晶振動控制
 Oscillation frequency 100 PPS 振動頻率 100週/秒
Altitude adjustment
仰角調整		 Type I: 15~40°  Type II: 26~51°
High-speed drive
高速驅動		 With the HS (High Speed) switch ON, highest speed up to 250X sideral (24V) 如HS鍵撥至ON, 最高速度可達 250倍恒星速 (24V)
Operated at DC24V
以直流24V操作		 Slew speed: 250x sideral rate or 3750 arc second/ sec.(1.04°/sec.)
回轉速度: 250倍恒星速或 3750弧秒/ 秒 (1.04°/秒)
Operated at DC12V
以直流12V操作		 Slew speed: 120x sideral rate or 1800 arc second/ sec.(0.5°/sec.)
回轉速度: 120倍恒星速或 1800弧秒/ 秒 (0.5°/秒)
Drive corrector
驅動修正		 Right ascension: 0.1~1.9 times (sidereal hour 0.1 time mark)
Declination: +- 1.5.~13.5 second angle / sec. (1.5  arc second mark) 赤經: 0.1~1.9倍 (恒星時0.1倍刻度)
 赤緯: +/-1.5~13.5弧秒/ 秒 (每刻度1.5弧秒)
Power source 電源 Rated DC12V, or DC24V 額定直流12V或24V
Power consumption
耗電量		 0.3~1A max. 2A
Compatible software
兼容軟件 		 * Telescope tracer 2000 (Pegasus)
* Stele navigator Ver 5
* THE SKY Ver 5
* Temma Pc NAVI (BITRAN)
Accessory included
包含配件		 RS-232 cable and hand controller  RS-232連線及手控
　 　



EM-10 使用手冊  EM-10 operation manual (Chinese)










EM-200 Temma II Equatorial Mount


EM-200USD3
EM-200 Temma II

Temma II panel

Offset setting of longitude



 		The EM-200 provides a stable support for all types of instrument (refractor, reflector or cassegrain) weighing up to 18kg. The modern aesthetic design of the EM-200 is highly attractive as well as beautifully functional. The RA and DEC stepper motors are fully integrated into the mounting, the high precision design and construction provides cyclic errors lower than +/- 5 arc seconds.

The integrated polar alignment telescope has an illuminated reticule which can be dimmed to suit the user or observing conditions. This in conjunction with the precision altitude and azimuth adjusters will typically give polar alignment accuracy within 2 minutes of arc of the celestial pole.

With a function-full hand controller, options on tripods and piers and also optional digital setting circles the EM-200 is an ideal mounting for the serious amateur.

350x and 700x Temma "Go To" versions now available.

All "Go To" mounts are provided with RS232C cable, ST-4 or ST-7 cable shaft encoders and first quality electric motors.

The mount can be operated in Temma mode and in the normal mode using the hand control.

The Temma requires the use of a PC to operate.

EM-200可提供穩定支持給所有器材,載重可達18公斤. 它既具現代化設計的吸引性, 亦具完美的功能. 赤經及赤緯步進馬達內藏於赤道儀內, 其高精度設計與構造使週期誤差低於+/-5弧秒.

EM-200的綜合極軸望遠鏡配備可調光暗視野照明, 配合仰角及地平微調, 極軸調較精度達2弧分.

全功能手控、可選配木製三腳及柱腳, 或附加定位度盤, 無疑EM-200是高級業餘發燒友的理想赤道儀.

350倍及700倍天馬 "Go To" 版本供選擇.

此赤道儀可用手控器操控天馬檔及普通檔.

EM-200天馬需要用電腦控制
R.A. Slow-Motion Motor driven
DEC. Slow-Motion Motor driven
Azimuth Adjustment 30°
Elevation 0-50° or
5-50°
Setting Circles R.A. -10' increments
DEC. -2° increments
Tracking Accuracy 5 arc seconds
Loading Capacity 16kg (35.2 lbs)
Gross Weight including
Counter-weight		 25.5kg (56.2 lbs)
(w/5kgx2 c/w)
Polar Finder Built-in with 5' setting accuracy, scale pattern effective until 2015 with quick reference dial for N/S
Motor Drive Sidereal rate
N/S switching
Slewing Speed (R.A.)
(R.A. high speed mode)
(DEC.)
(DEC. high speed mode)		 0.05x--2x
2x--16x
0--15arc/sec
30--240 arc/sec
Operating Voltage 12V/24V DC
Slewing speed 350x sidereal @ 12v
700x sidereal @ 24v
Power Consumption 250mA--500mA


control panel & control box of EM-200USD

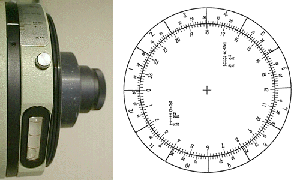

bubble level & polar alignment scale


NJP Temma II Equatorial Mount
The NJP mount offers a high capacity (70lb load) platform for a variety of photo and visual uses requiring the use of two instruments. The PD-8XY motor drive has a built-in connection for an auto guider and a 10x sidereal high speed mode allows electric centering of an object in the field, rather than using the less accurate manual override. The NJP also uses a side loading plate to insure that as the mount is elevated and depressed for proper polar alignment, it moves in a straight line. No other manufacturer includes this unique, useful feature in their mount.

175x and 350x Temma "Go To" version now available. All "Go To" mounts are provided with RS232C cable, ST-4 or ST-7 cable shaft encoders and first quality electric motors. The mount can operate in Temma mode and in the normal mode using the hand control.

The Temma requires the use of a PC to operate.






 SPECIFICATIONS for the NJP Temma II
Type German equatorial w/dual axis motor drive, drive corrector,
illuminated reticle polar finder & bubble level
Slow Motion Controls Motorized or Manual
Azimuth adjustment 15°
Altitude adjustment 20° - 50°
Latitude range 0° - 25°, 20° - 50°, call if above 50°
Worm wheel 150 brass
Worm Molybdenum Steel
Polar axis finder built-in with 2 arc minute setting accuracy variable illuminator
Tracking accuracy 4 arc seconds
Motor drive PD8XY sidereal Northern or Southern Hemisphere and Solar rate High speed 4 or 5 x sidereal on both axis
Operating voltage 12V/24V DC
Slewing speed 175x sidereal @ 12v 350x sidereal @ 24v
Power consumption 190mA
Clock display 00.00 sec. - 59m 59s - Timer Mode
01.00 sec. - 23h 59m - Clock Mode
Usable voltage 10.3V DC - 24.6V DC
Motors R.A. quartz controlled pulse
Dec. CR controlled pulse
Load capacity 30kg - 65 lbs.
Weight of equatorial head 25 kgs - 55 lbs.
Counter weights 6.5 kg. screw on x 3
Guarantee 5 year mechanical - 1 year electrical
Options Astro scale digital setting circles, pier mount.


EM-500 Temma II Equatorial Mount

The state-of-the-art EM-500 Temma II mount has a tracking accuracy that is guaranteed to +/- 3.5 arc seconds without periodic error correction and it runs off of 24V DC. The EM-500 Temma II slews at 560X the Sidereal rate. The Temma II GoTo System can be operated via The Sky, Level IV software and is closed-loop. This means that the telescope can be moved manually without restarting the GoTo system. The mount can also be operated in manual (non-GoTo) mode without connecting to a computer and dual-axis tracking is available in this mode.

The self-contained illuminated polar finder is accurate to two arc minutes of the pole. Autoguider and CCD cables are available for most CCD cameras including serial, RJ-11, and USB connectors. Main gears are phosphor-bronze with matching moly-steel worms for greater accuracy and durability vs. aluminum & stainless steel. New, precision micro-stepping motors provide high durabilty with softer pulse-peaks for better imaging. No need for servos and variable-voltage systems that reduce longevity.



    SPECIFICATIONS for the EM-500 Temma II
Type German type, RA/DEC Motor Driven System Built-In
R.A. Slow Motion Electric
DEC Slow Motion Electric
Self-contained illuminated polar finder Accurate to two arc minutes of the pole
Operation 12V/24v
Slewing speed

350x sidereal @ 12v
560x sidereal @ 24v
Input Terminal For Auto Guider (ST-4)
Loading Capacity 40kg.(89lbs.) but it can reasonably handle 120lbs.
Tracking Accuracy +/-3.5"

Operational
software

 The Sky, Level IV software and is closed-loop






Equatorial mount & Slewing Speed Summary 赤道儀與回轉速度一覽表

Model 型 號 ＤＣ１２Ｖ ＤＣ２４Ｖ 振盪頻率
Oscillation frequency
GOTO TYPE 自動導入式 　 　 　
ＥＭ－１０ Ｔｅｍｍａ２ Ｊｒ. １２０倍速 ２５０倍速 １００ｐｐｓ
ＥＭ－２００ Ｔｅｍｍａ２ Ｊｒ. １２０倍速 ２５０倍速 １００ｐｐｓ
ＥＭ－２００ Ｔｅｍｍａ２ ３５０倍速 ７００倍速 １００ｐｐｓ
ＮＪＰ Ｔｅｍｍａ２ １７５倍速 ３５０倍速 ２００ｐｐｓ
ＥＭ－５００ Ｔｅｍｍａ２ ２６０倍速 ５２０倍速 １１５ｐｐｓ
DUAL AXIS TYPE 雙軸式 　 　 　
ＥＭ－１０ ＵＳＤ３ １２０倍速 ２５０倍速 １００ｐｐｓ
ＥＭ－２００ ＵＳＤ３ １２０倍速 ２５０倍速 １００ｐｐｓ


Temma-2 Technical Report  Temma-2 技術報告

The Temma-2, which is the third generation of Takahashi's go-to mounts, is now available. The Temma-2 is the successor to the Temma-PC. The programing has been updated to allow it to perform more complicated tasks. The new and improved Temma-2, which along with the new more advanced programing, will permit the Temma-2 to drive in both axes at the same time thereby reducing the go-to time.
Different from an open loop system, the servo control system employed by the Temma-2 monitors the real-time position for the R.A. and Dec. This is accomplished by using a 16-bit CPU to make these complicated calculations.

Highly Integrated Built-in Printed Circuit
The LSI used to drive the stepping motors allows the components to be miniaturized making the entire assembly smaller.
